Precision Universal Dividing Head for Milling Machine, 5" Rotary Milling Head Set with 3 Indexing Plates, Tailstock & 3-Jaw Chuck for Milling, Grinding, Drilling (125mm)

Introducing our versatile indexing head, an essential machine tool accessory designed for milling machines, enabling precise division of workpieces into equal parts. With its user-friendly indexing scale ring and vernier, along with a positioning pin and indexing disk, this tool allows you to divide your workpiece into any angle effortlessly. Whether you're machining grooves, spur gears, helical spur gears, or helical cams, this indexing head supports a variety of cutting tools to meet your machining needs.This indexing head can be used both horizontally and vertically, providing you with flexibility and convenience in your workshop. Its robust cast iron construction ensures durability and longevity, making it ideal for metal mold machining and other demanding applications.Key Features:- Center Heights: Available in 100mm (3.9in) and 130mm (5.1in) for different setups.- Chuck Diameter Options: Choose from 100mm (3.9in), 125mm (5in), and 160mm (6.3in) to accommodate various workpieces.- Reliable 3-Jaw Chuck: Designed for a clamping range of 2-80mm (0.07-3.1in), 2-110mm (0.07-4.3in), and 3-145mm (0.1-5.7in) for versatile applications.- Weight Variations: Choose models weighing 20kg (44lb), 22kg (48.5lb), or 29kg (64lb) to suit your requirements.Package Includes:1 x Indexing head with all necessary accessories for immediate use.We understand that precise measurements are crucial, so please note that sizes are manually measured, and there may be slight variations. Additionally, due to differences in screen displays, color may vary slightly from the actual product. If you have any questions or need assistance, don't hesitate to reach out to us. Our team is dedicated to ensuring customer satisfaction and will respond within 24 hours.

• Forged Cast Iron: Our Rotary Tables are crafted from FC30 Cast Iron, known for its exceptional Wear Resistance and High Hardness Surface. This design helps prevent Scratches and Resist Abrasion, ensuring durability for long-term use. Ideal for precision tasks, our product offers reliable performance and stability in various applications, making it a valuable addition to your workshop.

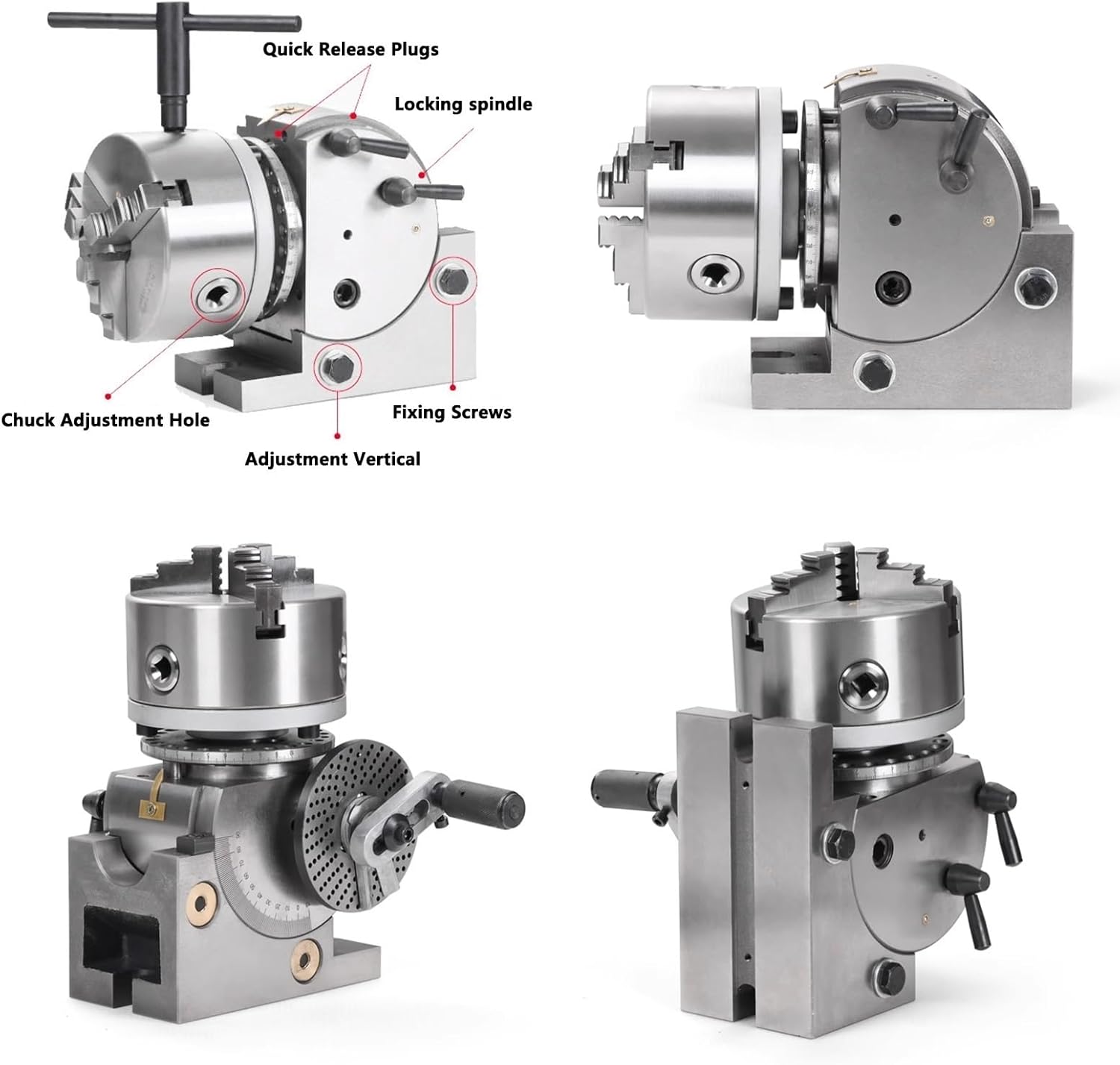

• The Milling Machine Rotary Table features a user-friendly handwheel with clear graduations for accurate measurements. Ideal for intuitive operation, it allows for precise control over even the slightest adjustments. The tilting headstock of the indexing head ranges from 10° below horizontal to 90° vertical, enabling versatile work with various material sizes by easily adjusting the angle.
• Universal Indexing Plates: Enhance your machining precision with our versatile indexing head featuring a direct indexing plate and interchangeable plates on the headstock. Included are two additional plates with varying hole counts for customizable settings. Perfect for achieving accurate cuts and optimizing your workflow in metalworking and woodworking applications.
• GEAR RATIO: Featuring a 1:40 Gear Ratio, our 24-Hole Direct Indexing Dial facilitates precise divisions of 2, 3, 4, 6, 8, 12, and 24. Perfect for Small Milling Machines, it enhances your Milling Efficiency. The included Tailstock offers robust support for long Metal Bars, ensuring a more stable working environment for your machining tasks.
• Multi-Functional: Ideal for Milling Machines, Grinding Machines, Drilling Machines, and Planing Machines. This Indexing Head features a well-thought-out design and dependable quality, making it perfect for basic slitting tasks on Milling Machines or other specialized equipment. Enhance your machining capabilities with this versatile tool, designed for efficiency and precision.
